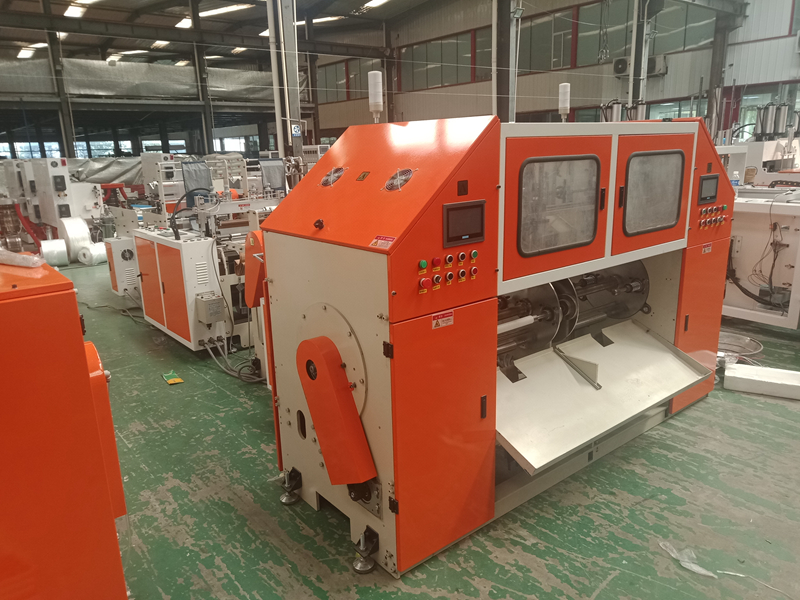

Full-automatic Bag-on-roll Making Machine with core

Lane   Quantity

Two   lanes

Bag   making width

200-350mm

Bag   making length

300-600mm

Bag   making speed

60-150pcs/min   ( T-shirt rolling bag with core)

50-190pcs/min   (Flat seal rolling bag with core)

Max   line speed of film

80   m/min

Bag   making thickness

0.006-0.025mm

Bag   making methods

T-shirt   rolling bag & Flat seal rolling bag with core

Machine Weight(L*W*H)

2500kg

Overall Size

6200*2200*1800

Machine main controller

PLC & Touch Screen operation   system，

Power Switch24V,100w (Taiwan Brand)

Power of main motor

1.1kw, 380V (Chinese Brand)

Main motor controller

1.5kw 380v Inverter controller   (Chinese Brand)

Bag making length controller

3.7kw servo motor，roller diameter 80mm，length 350mm。

Temperature controller

Four Areas Heating, Including Warning   Device

Temperature control precision

±1℃

Total heating power

Seal knife heating power tube 1.2kw（220V），length 350mm，diameter   16mm。Seal knife 350mm。

Bottom base heating 300W（110V）。

Releasing Film Roll Method

550w gear motor

Releasing Motor Inverter

0.75kw Chinese Brand

The downtime of break controller

Photoelectric Sensor (Panasonic)

Loading Method

Pneumatic，100*250mm Cylinder。

Conveyor Roll Motor

550w Horizontal type AC motor

Conveyor Roll Inverter

0.75kw Chinese Brand

Traction Motor

550wHorizontal type Ac motor

Traction Inverter

0.75kw Chinese Brand

ESP device

2 sets

Winding Controller

PLC（3232MT）&   Touch Screen（7   inch）control，

24V electric power（100w）。

Winding Motor Power

550w, AC motor*4

Winding motor controller

0.75kw inverter controller*4，Chinese brand

Turn plate controller

350A Stepping motor

Contactor Switch and Mid relay

Schneider, France

Magnetic valve

SMC, Japan

Bearing

NSK, Japan

Install power

About 19.5kw

Working Power Consumption

About 6kw per hour

Machine Weight

3200kg

Overall Size

Length 6200*Width 2200*Height1900mm
