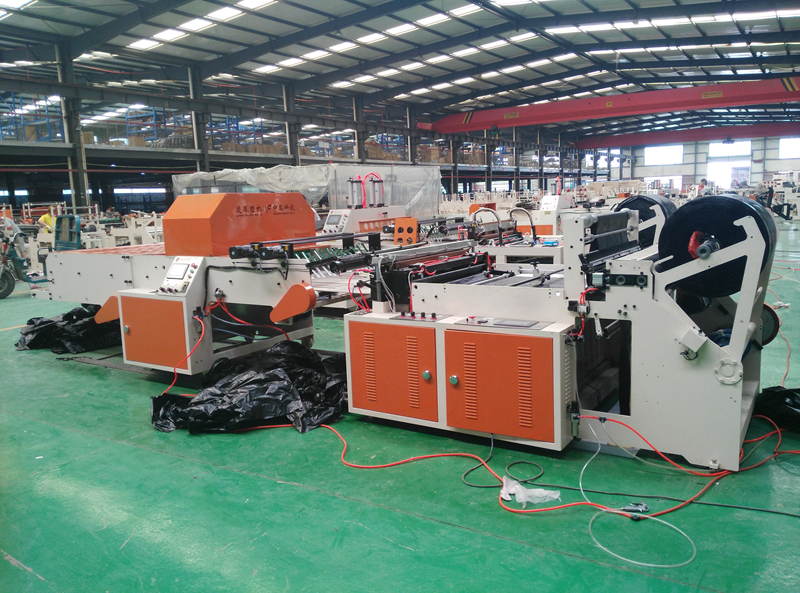

Full-automatic Cold Cutting Flat Bag Jumbo bag Making Machine

Feature and advantage

1.       Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.

2.       Adopted patented unwind stand for avoiding tension stretching plastic film.

3.       Unwind Stand equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.

4.       Equipped with specialized pneumatic Expandable Scroll fastens the film roller, easy operation.

5.       Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.

6.       Cutter and sealing knife "180°turnover" device, easy for clean and maintenance, also ensure the safety.

7.       Special design of cold cutting and hot sealing parts make the bag’s sealing line strong.

8.       The machine adopted plugging type IC circuit auto-controlled system for easy replacement.

9.       Servo-motor accurately control Robot hand moment position.

Technology Parameter

Model No.	LF-SFC-1100	LF-SFC-1200
The   max width of the bag (mm)	1050	1150
The length of the bag (mm)	800-1500	800-1500
Bag making speed (pcs/min)	100-150	100-150
Film thickness (mm)	0.02-0.08	0.02-0.08
Gas consumption (m3/min)	0.4	0.4
Bag making roll quantity (roll)	1	1
Weight (kg)	2502	2682
Main inverter power (kw)	1.5	1.5
Conveyer inverter power (kw)	1.5	1.5
Inverter quantity (sets)	3	3
Servo motor power (kw)	4.4/5.5	4.4/5.5
Servo motor quantity (sets)	2	2
Work voltage (V)	AC 380v	AC 380v
