Fumart flotation machine

Fumart flotation machine

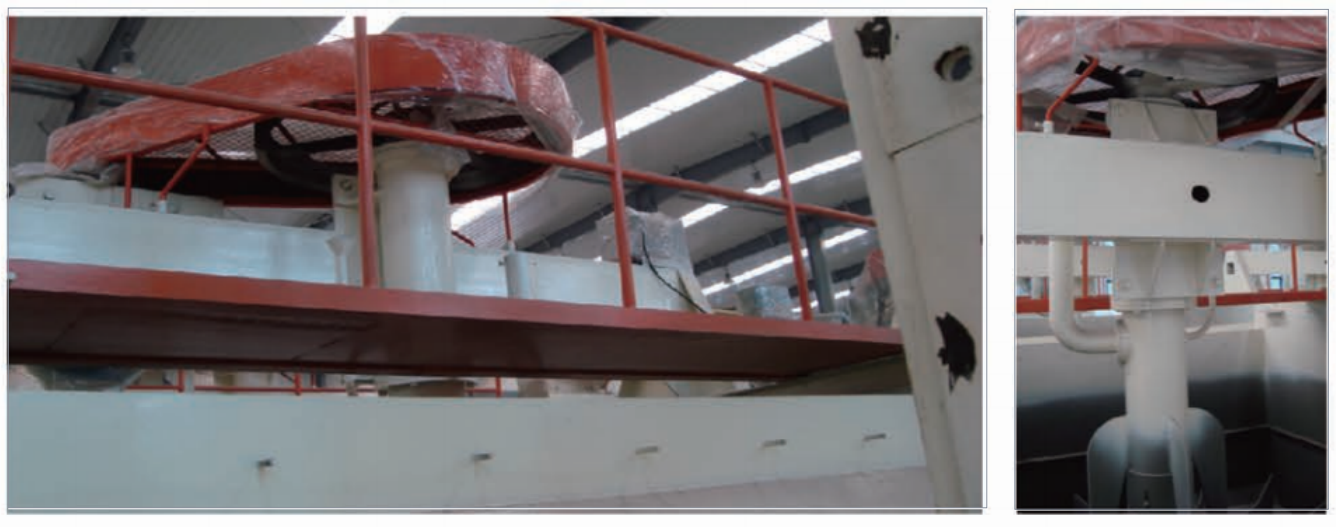

The Fumart XJM-S flotation machine is a mechanical stirring self suction flotation machine mainly used for separating coal slime below 0.5mm, and is also an effective equipment for separating iron ore, phosphohydrochloric acid, lead, and zinc ore.

Product characteristics of XJM-S flotation machine

1. This series of flotation machines adopts mechanical stirring, with a double-layer umbrella shaped impeller structure. The upper impeller sucks in flotation reagents and air, while the lower impeller sucks in coal slurry, circulating the coal slurry inside the tank. Stir and mix the three thoroughly. The slurry flow pattern is reasonable and the processing capacity is large.

2. High inflation efficiency, wide adjustable range, and fast flotation speed. When turned on, the intake volume can be adjusted at will.

3. This machine adopts an advanced feeding method: "false bottom suction, peripheral overflow". This feeding method is unique to this machine and combines the advantages of direct current feeding and self suction feeding. It not only overcomes the phenomenon of short circuits in direct current feeding slurry, but also overcomes the disadvantage of small throughput of self suction feeding slurry.

4. According to the difference of coal type, particle size and concentration, optimize the design of hydrodynamic parameters, so as to achieve ideal separation effect for high density, coarse and fine coal.

5. Compact structure, light weight, and reliable operation. Fast flotation speed, high selectivity for fine particle size, and good flotation effect for coarse particle size.

6. Low energy and drug consumption, and lower installed and actual power consumption than flotation machines of the same type and specification.

7. High operational reliability, convenient operation and maintenance, single point control of slurry level, which can be adjusted automatically or manually.

8. The impeller and stator are made of wear-resistant materials, with a service life of 3-5 years.
